Frome 1515 LP
Hot Water
MAIN FEATURES
•4 poles electrical motor (1450 RPM) with thermal protection
•Three full ceramic pistons, brass linear pump head with built-in by-pass valve
•Total Stop
•Suction and delivery S/S valves
•Vertical burner with high thermal efficiency steel coil
•Temperature regulation gauge
•Auxiliary motor for burner
•Integrated detergent suction with external suction probe
•Pressure regulator
•Glicerine pressure gauge with analogic controls
•Accessory holder
•Power cable holder (5m)
•Heavy duty steel frame
•Foaming wheels
Frome 1515 LP
Hot Water
•4 poles electrical motor (1450 RPM) with thermal protection
•Three full ceramic pistons, brass linear pump head with built-in by-pass valve
•Total Stop
•Suction and delivery S/S valves
•Vertical burner with high thermal efficiency steel coil
•Temperature regulation gauge
•Auxiliary motor for burner
•Integrated detergent suction with external suction probe
•Pressure regulator
•Glicerine pressure gauge with analogic controls
•Accessory holder
•Power cable holder (5m)
•Heavy duty steel frame
•Foaming wheels
MAIN FEATURES
TECHNICAL FEATURES
Frome 1515 LP
| Operating pressure bar(Bar) | 30÷110(max 150) |
| Max delivery rate(l/h) | 900 |
| Abs. power/Voltage(W/V) | 5500-400V~50Hz |
| RPM | 1450 |
| Weight(Kg) | 140 |
| Packing dim(cm) | 120x74 h 101 |
| Pcs for pallet | 1 |
Load Qty: 20'=24 40'=54 40'HC=54
Floor loaded not available
Available also 60Hz versions: Frome 1513 220/380V-60Hz 3 ph. - 435÷2175 psi - 3.89 GPM - 5000W- 1700 RPM
Frome 1813 (on request): 400V-50Hz - 180 bar - 780 l/h - 5500W - 1450 RPM

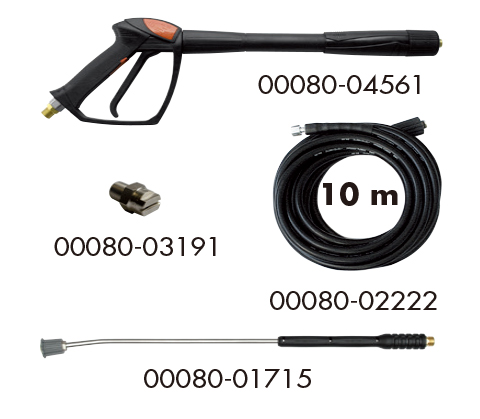

INCLUDED ACCESSORIES
