Heat 2515 LP
Hot Water
MAIN FEATURES
•4 poles electrical motor (1450 RPM) with thermal protection. Three ceramic pistons, brass linear pump head with flanged by-pass valve
•Delayed Total Stop
•Suction and delivery S. S. valves
•Vertical burner with high thermal efficiency steel coil
•Low pressure detergent flow with integrated detergent tank (optional)
•Auxiliary motor for burner air-cooling and two ways fuel pump
•Temperature regulation gauge with high sensitive stainless steel sensor
•Safety valve
•Ordinary maintenance alarm
•Power led
•Low diesel light
•Microleaks detection
•Hose reel (optional)
Heat 2515 LP
Hot Water
•4 poles electrical motor (1450 RPM) with thermal protection. Three ceramic pistons, brass linear pump head with flanged by-pass valve
•Delayed Total Stop
•Suction and delivery S. S. valves
•Vertical burner with high thermal efficiency steel coil
•Low pressure detergent flow with integrated detergent tank (optional)
•Auxiliary motor for burner air-cooling and two ways fuel pump
•Temperature regulation gauge with high sensitive stainless steel sensor
•Safety valve
•Ordinary maintenance alarm
•Power led
•Low diesel light
•Microleaks detection
•Hose reel (optional)
MAIN FEATURES
TECHNICAL FEATURES
Heat 2515 LP
| Code | 36078-00053 |
| Operating pressure bar(Bar) | 30÷250(max 280) |
| Max delivery rate(l/h) | 900 |
| Abs. power/Voltage(W/V) | 9400-400V~50Hz |
| RPM | 1450 |
| Weight(Kg) | 146.5 |
| Packing dim(cm) | 120x74 h 101 |
| Pcs for pallet | 1 |
Load Qty: 20'=24 40'=54 40'HC=54
Floor loaded not available

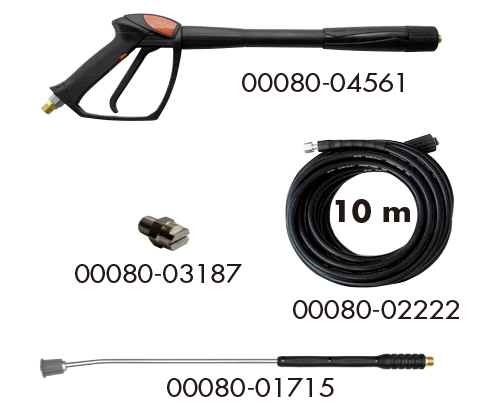

INCLUDED ACCESSORIES
