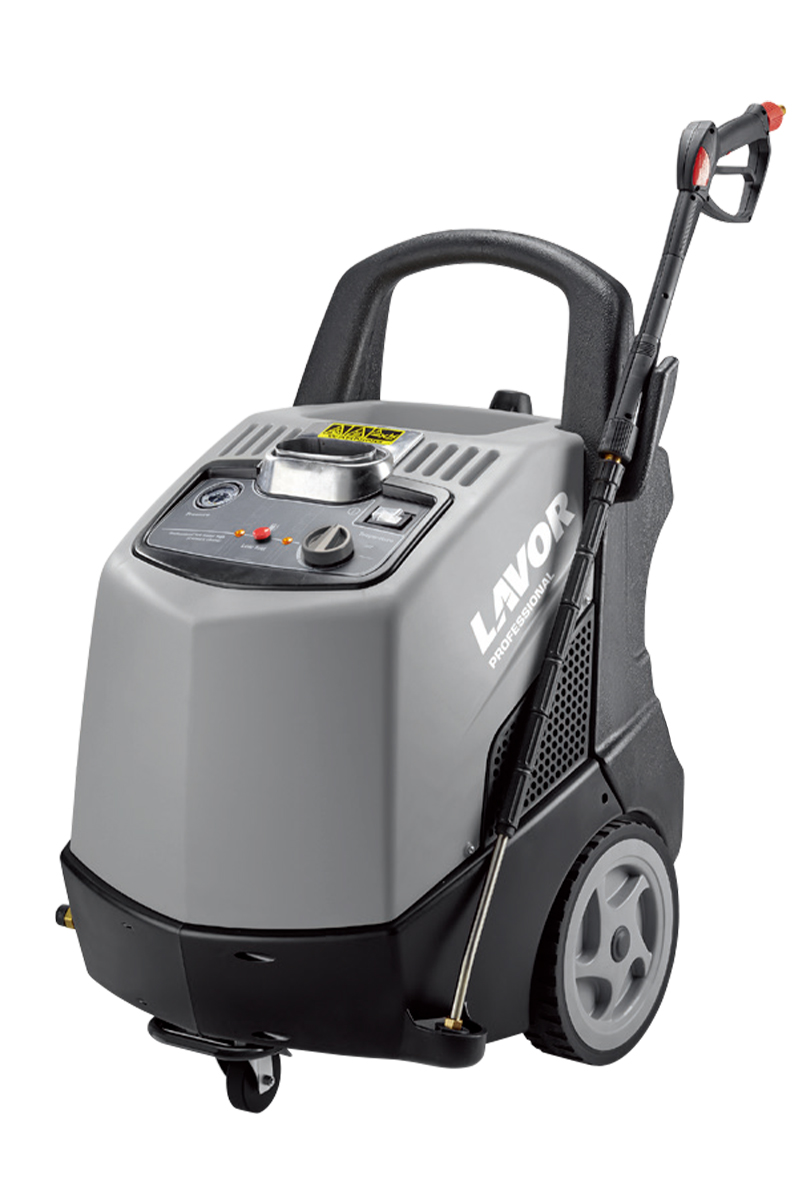

Texas R2 1211 LP
HOT WATER
MAIN FEATURES
4 poles electrical induction motor 1400RPM with thermal protection
Brass linear pump with three ceramic coated pistons, double water seal and built-in by-pass valve
Suction and delivery S. S. valves
Temperature regulation thermostat with high sensitive stainless steel sensor
Auxiliary motor for burner
Delayed Total Stop
Professional control panel with Microleaks detector, Maintenance alert light, Power light,Diesel reserve warning light
Detergent built-in tank (4,2 lt) for indirect suction
Pressure gauge
Low Diesel light
Texas R2 1211 LP
Compact cold water high pressure cleaner
MAIN FEATURES
4 poles electrical induction motor 1400RPM with thermal protection
Brass linear pump with three ceramic coated pistons, double water seal and built-in by-pass valve
Suction and delivery S. S. valves
Temperature regulation thermostat with high sensitive stainless steel sensor
Auxiliary motor for burner
Delayed Total Stop
Professional control panel with Microleaks detector, Maintenance alert light, Power light,Diesel reserve warning light
Detergent built-in tank (4,2 lt) for indirect suction
Pressure gauge
Low Diesel light
TECHNICAL FEATURES
Texas R2 1211 LP
Code
36079-00007
Operating pressure bar(bar)
30÷135
Max delivery rate(l/h)
660
Abs. power(W)
3000
Voltage(V-Hz)
230-50
RPM
1400
Weight(Kg)
112
Packing dim. (cm)
85 X 65 h97
Pcs for pallet(pcs)
6
TECHNICAL DOCUMENTS

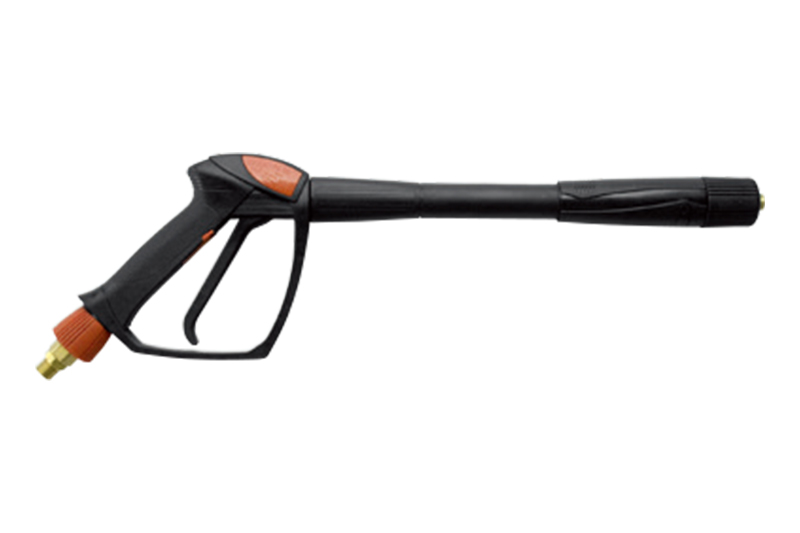

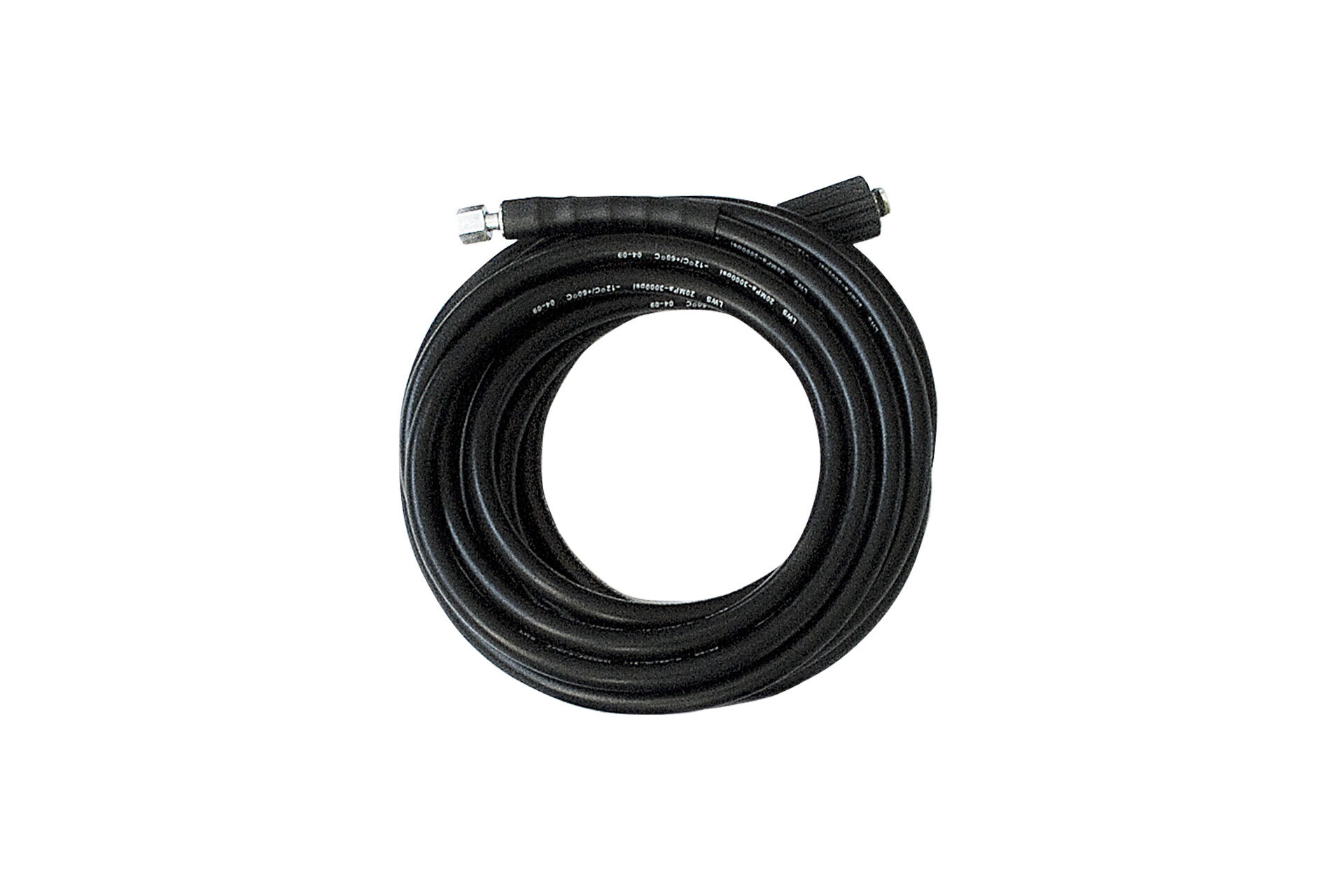

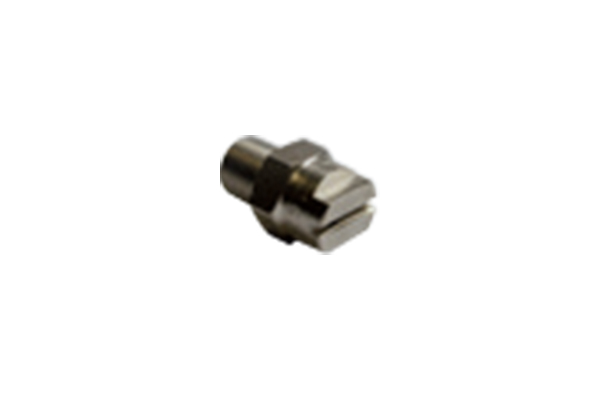

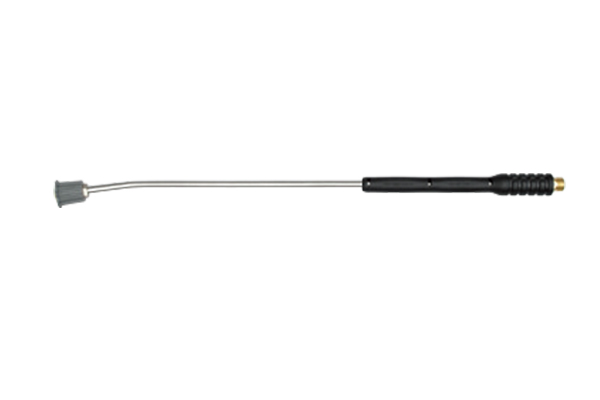

INCLUDED ACCESSORIES
00080-04561
00080-02417
00080-03188
00080-01715
